Bi-amplifier

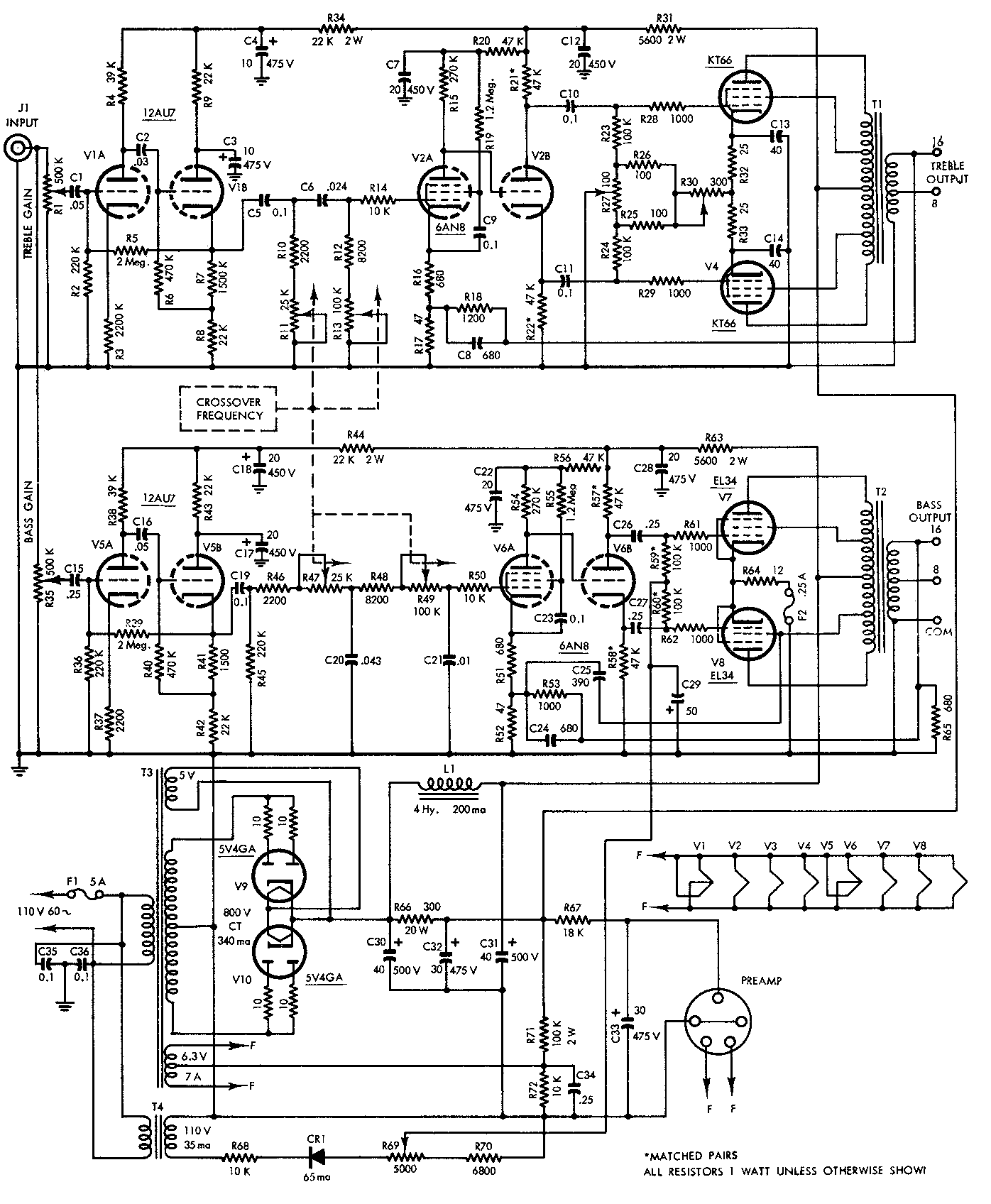

Schematic by George C. Kane (August 1959). Dual amplifier including a variable filter for bi-amplification.
Power 50W (bass) and 20W (treble).

Amplifier & Power Supply
